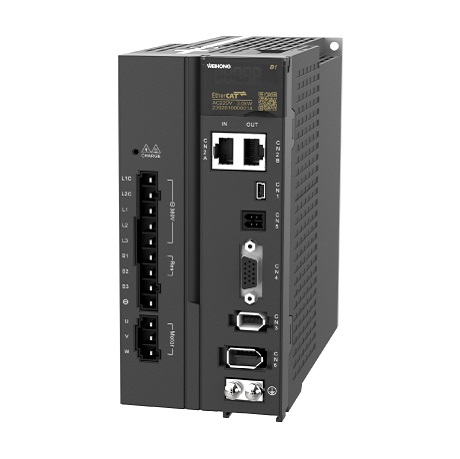

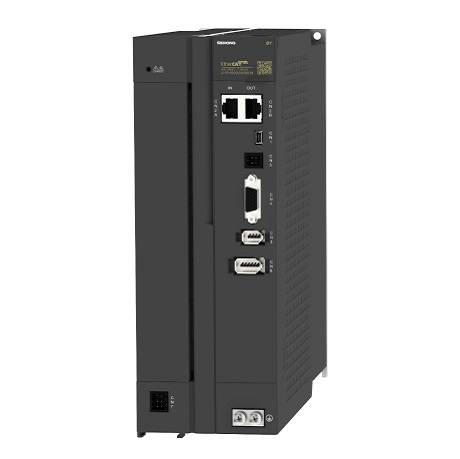

Product Configuration

Mounting Demension

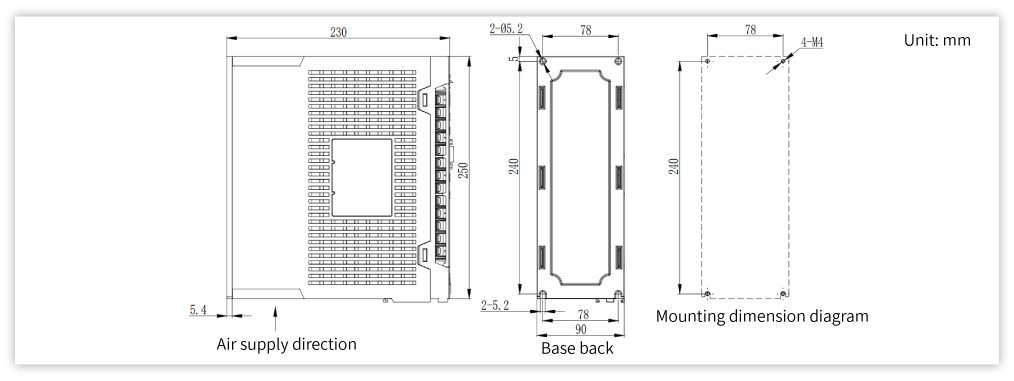

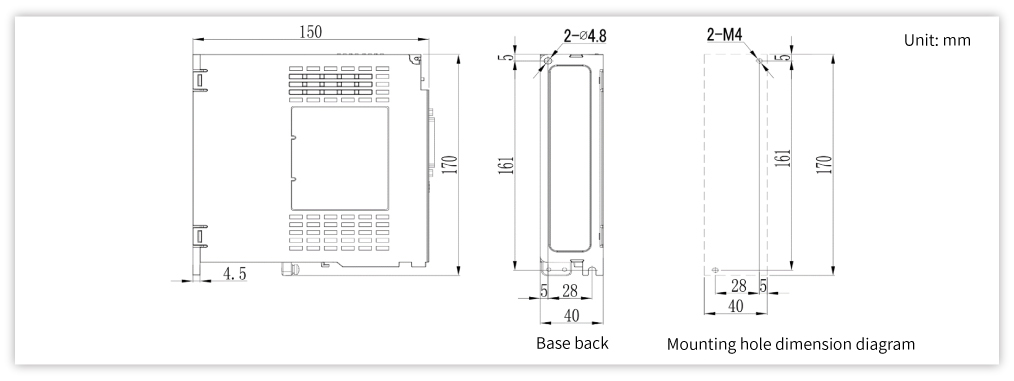

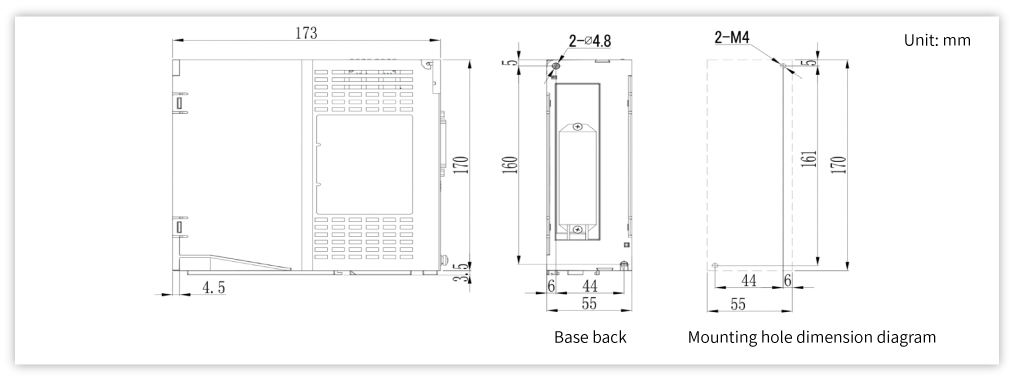

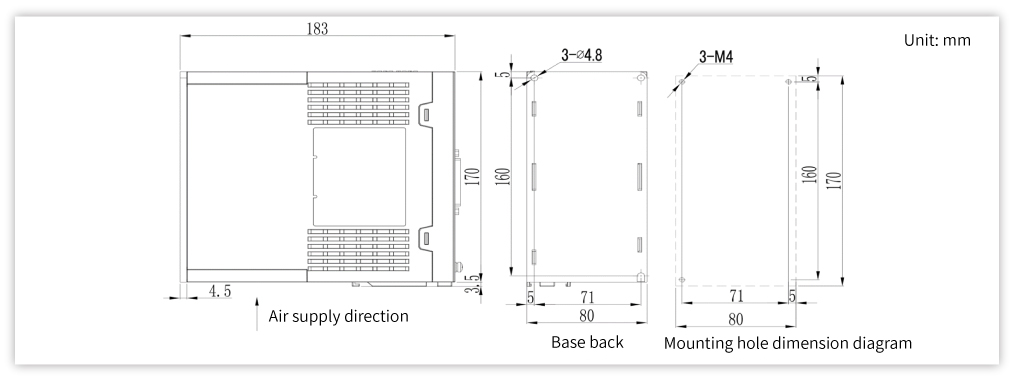

Mounting Dimension

Basic Specification

Main Circuit Power Supply
WSD-B1-02B、WSD-B1-04B:Single-phase 200V~240V +10%- 15%,50/60HZ
WSD-B1-08B、WSD-B1-10B:Single/three-phase 200V~240V +10%- 15%,50/60HZ
WSD-B1-15B:Three-phase 200V~240V +10%- 15%,50/60HZ
WSD-B1-15C、WSD-B1-30C、WSD-B1-50C、WSD-B1-75C、WSD-B1-110C:Three-phase 380V~440V +10%- 15%,50/60HZ

Control Circuit Power Supply
WSD-B1-02B、WSD-B1-04B、WSD-B1-08B、WSD-B1-10B:None
WSD-B1-15B:Single-phase 200V~240V +10%-15%,50/60HZ
WSD-B1-15C、WSD-B1-30C、WSD-B1-50C、WSD-B1-75C、WSD-B1-110C:Single-phase 380V~440V  +10%- 15%,50/60HZ

Control Mode
SVPWM

Encoder Support
17 bits/20 bits/23 bits/24 bits/25 bits

Communication Method with PC
USB Communication

Panel Operator
5 buttons, 5 bits LED display

Regenerative resistor
200W、400W:No built-in regenerative resistor
750W、1.0kW、1.5kW、3.0kW、5.0kW、7.5kW、11Kw:Built-in regenerative resistor

Dynamic Brake
Built-in

Control Mode
Including position control、velocity control、torque control、
position speed switching control、position torque switching control、
and speed torque switching control

Protect

Hardware Protection
Overvoltage、undervoltage、overcurrent、 drive overheating、encoder abnormality、etc

Software Protection
Memory failure、initialization failure、I/O allocation error、overspeed、overload、brake resistor overload、 position deviation excess、etc

Alarm Record
Record 14 faults and the latest 3 detailed alarm information

Widely applied in…

Successful Cases



Router machine
Mould machine
Glass edge grinding machine
Robot arms
Embroidery machine
